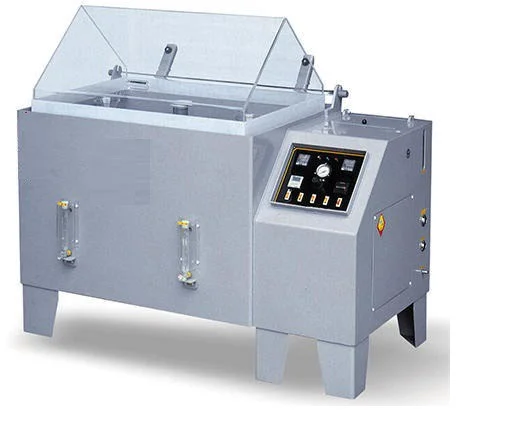

Salt Spray Test Chamber SST-216B – 216 Liter ASTM B117 / ISO 9227 Laboratory Model

The Salt Spray Test Chamber SST-216B is a heavy-duty corrosion test chamber designed for
neutral salt spray (NSS) testing as per ASTM B117 and ISO 9227.
This Salt Spray Test Chamber SST-216B is ideal for laboratories, R&D centres and quality control
departments that need stable and repeatable corrosion testing for coated, plated and painted metal components.

With a 216 liter chamber capacity, the Salt Spray Test Chamber SST-216B offers a practical
mid-size solution for routine lab testing as well as higher sample loading compared to smaller models.
It is commonly used to verify coating performance, surface treatment quality and corrosion resistance before dispatch.

Capacity & Dimensions – Salt Spray Test Chamber SST-216B

• Chamber Capacity: 216 Liter (Laboratory Basic Model)
• Chamber Size (L × W × H): 600 × 600 × 600 mm
• Overall Size / Space Required: approx. 775 × 700 × 900 mm
• Power Supply: 220 VAC, single phase
• Warranty: 1 Year

Key Features – Salt Spray Test Chamber SST-216B (216 Liter)

• Main chamber made of 8 mm PP sheets – long life and corrosion resistance
• Transparent 5 mm acrylic top – easy observation during test
• 4–6 specimen hanging rods (depends on maximum job size)
• Separate reservoir tank for saline solution – 20 liter capacity
• Low saline solution level indication on front panel
• Automatic saline level maintenance (high/low level sensors)
• Automatic waste water drainage system (no manual drain)
• Automatic temperature controller with dual display
• Over-temperature warning indicator on front panel
• Shock-free, corrosion-resistant, unbreakable heaters (no glass heater)
• Side fogging system for uniform spray distribution
• Standardized fog collection system as per ASTM requirement
• Hour meter: 999 hours 59.9 minutes
• Process complete buzzer alarm with indicator

Standards Supported – ASTM B117 & ISO 9227

ASTM B117 – Salt Spray (Fog) Test

ASTM B117 defines the apparatus and operating conditions for salt spray corrosion testing.
The Salt Spray Test Chamber SST-216B supports standard requirements including controlled temperature,
fog generation and fog collection monitoring for repeatable test results.

ISO 9227 – Corrosion Tests in Artificial Atmospheres

ISO 9227 specifies corrosion tests in artificial atmospheres and covers NSS/AASS/CASS methods depending on test requirement.
This chamber is manufactured for laboratory use and can be configured as per customer test method.

Technical reference (DoFollow external link for authority):

Salt spray test (ASTM B117) – overview

How Salt Spray Test Chamber SST-216B Works

In the Salt Spray Test Chamber SST-216B, a salt solution is atomized through specialized nozzles to form
a fine fog inside the exposure chamber. Test specimens are mounted on rods/holders at defined angles so that fog settles
uniformly. The chamber maintains a controlled environment, typically 35 ± 2°C, to produce repeatable
corrosion exposure as per test standard.

• Salt solution is prepared and maintained in the reservoir tank
• Oil-free compressed air is regulated to create stable fog
• Fog falls on specimens uniformly inside the chamber
• Fog collection and pH are checked to confirm standard conditions

Recommended Test Settings (Typical ASTM B117 Guidance)

Temperature Control

The exposure zone is maintained at 35 ± 2°C. Temperature control ensures repeatable corrosion rate.

pH of Collected Solution

The pH of collected solution is maintained in the range 6.5 to 7.2 at 35°C (typical NSS requirement).
A pH meter is used to verify this during testing.

Air Supply & Pressure

Air must be clean, oil-free and dust-free. Typical pressure is maintained at 1.0 kg/cm² ± 0.2
to achieve stable fog generation.

Fog Collection Rate

Fog quantity is typically maintained so that 1.0 to 2.0 mL/hour is collected per 80 cm²
(4-inch funnel area) based on an average run of at least 16 hours.

Step-by-Step: Running a Salt Spray Test (Quick Guide)

1. Prepare saline solution (as per test method) and fill reservoir tank.
2. Mount specimens on hanging rods with proper spacing (avoid touching).
3. Set chamber temperature and allow system to stabilize.
4. Start fogging and confirm uniform spray and fog collection.
5. Check pH and fog collection rate periodically during the test.
6. Complete test duration and record results (visual inspection / rating).

Typical Applications – Salt Spray Test Chamber SST-216B

• Electroplating quality verification (zinc, nickel, chrome, etc.)
• Powder coating / paint coating performance evaluation
• Automotive parts, fasteners, hardware and fabricated components
• Surface treatment labs, job coaters and inspection labs
• R&D and QA/QC laboratories for corrosion testing

The Salt Spray Test Chamber SST-216B is widely selected by labs that need a stable,
medium-capacity chamber with ASTM B117 features and easy maintenance.

Other Salt Spray Chamber Models (Internal Links)

1. Salt Spray Test Chamber 162A – Standard Laboratory Model
2. Salt Spray Test Chamber 162B – ASTM B117
3. Salt Spray Test Chamber 216A – Standard Model
4. Salt Spray Test Chamber SST-216B – ASTM B117
5. Salt Spray / Corrosion Test Chamber 240A – Standard B117
6. Salt Spray Test Chamber 1KB – Graphical Display
7. Custom designed chambers available as per size and specification

FAQ – Salt Spray Test Chamber SST-216B

1) What is the use of Salt Spray Test Chamber SST-216B?

The Salt Spray Test Chamber SST-216B is used to test corrosion resistance of metals and coatings by exposing
specimens to controlled salt fog conditions for a defined test duration.

2) Which standards are supported by this chamber?

This model is designed for laboratory salt spray testing as per ASTM B117 and ISO 9227.

3) What is the chamber capacity and size?

The chamber capacity is 216 Liter with chamber size 600 × 600 × 600 mm.
Overall space required is approx. 775 × 700 × 900 mm.

4) What temperature is maintained during testing?

Typical exposure zone temperature is maintained at 35 ± 2°C for neutral salt spray testing.

5) What pH range should be maintained for collected solution?

For NSS testing, the collected solution pH is maintained in the range 6.5 to 7.2 at 35°C (typical ASTM B117 guidance).

6) Can you manufacture custom size salt spray chambers?

Yes. We manufacture custom salt spray chambers as per required chamber size, capacity, standard and specification.
