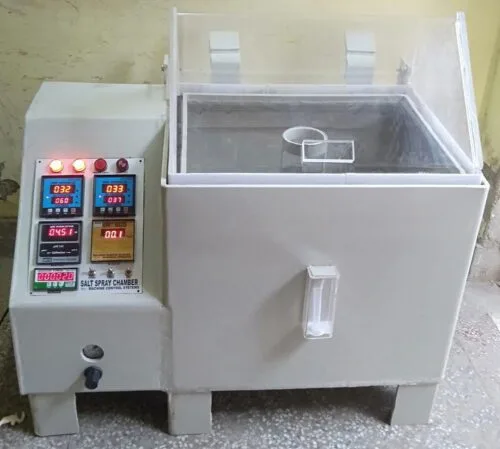

Salt Spray Chamber SST-216A

Salt Spray Chamber SST-216A – 216 Liter Corrosion Test Chamber (ASTM B117 / ISO 9227)

The Salt Spray Chamber SST-216A is a high-performance corrosion testing chamber
used to evaluate rust resistance and coating durability under controlled salt fog conditions.
It supports standard test methods like ASTM B117, ISO 9227 and JIS Z 2371,
making it suitable for industrial and laboratory use.

This chamber is widely used for testing painted surfaces, electroplated components, zinc coatings,
anodized parts, automotive components, and metal hardware to ensure long-term reliability.

Capacity & Dimensions – SST-216A (216 Liter)

1. Chamber Capacity: 216 Liter (Laboratory model as per ASTM B117 / ISO 9227)
2. Chamber Size (L × W × H): 600 × 600 × 600 mm
3. Overall Machine Size (Approx.): 950 × 700 × 900 mm

Key Features – Salt Spray Chamber SST-216A

1. Main chamber: PP, 8 mm sheets (corrosion resistant)
2. Top cover: 5 mm acrylic transparent
3. Material hangers: 4–6 hanging rods (depending on max job size)
4. Main water tank separated from spray chamber (approx. 20 Liters)
5. Low saline level indication on front panel
6. Auto-fill and level-maintaining system for reservoir saline tank (sensors)
7. Chamber waste water auto drainage control (no manual drain)
8. Periodic compressed air circulation in saline tank for dissolving residues
9. Fully automatic temperature controller (double display) for heating water
10. Over-temperature warning indicator on front panel
11. Separate indicator for chamber temperature and humidity
12. Shock-free, anti-corrosion, unbreakable heaters (no glass heater)
13. Centralized fogging system as per ISO 9227 and ASTM B117
14. Standardized fog collection system as per ASTM B117
15. Automatic fog operating system controlled by process switch ON/OFF
16. Hour meter: 999 hours 59 minutes (model dependent)
17. Digital pH meter with sensor for monitoring saline solution pH
18. Digital humidity meter with sensor to monitor chamber humidity
19. Process complete buzzer alarm with indicator
20. Power Supply: 220 VAC
21. Warranty: 1 Year

Standards – ASTM B117 & ISO 9227 (Salt Spray / Salt Fog Test)

1) Scope

This apparatus is suitable for salt spray (fog) testing of ferrous and non-ferrous metals and also used to test
organic and inorganic coatings where such tests form the basis for material or product specifications.

2) Apparatus

A salt spray test system consists of a fog chamber, salt solution reservoir, air supply system, atomizing nozzle(s),
specimen supports, heaters for heating the salt solution, and necessary control and monitoring systems.

3) Temperature Control

The exposure zone of the salt spray chamber is maintained at 35 ± 2 °C. The controller maintains
the temperature within a specified operating range for repeatable results.

4) pH Control

As per ASTM B117, when atomized at 35 °C the collected solution should be within the pH range
6.5 to 7.2. A pH meter is used to monitor this value.

5) Air Supply

Air supply must be free from oil and dust. Pressure is maintained so that uniform salt fog occurs.
Typical pressure: 1.0 kg/cm² ± 0.2.

6) Atomization and Quantity of Fog

As per ASTM B117, for every 80 cm² (4-inch funnel) of horizontal collecting area,
collected solution should be 1.0 to 2.0 mL per hour averaged over at least 16 hours.

Standards reference (dofollow):
ASTM B117

Applications – Salt Spray Chamber SST-216A

• Metal components and fasteners
• Automobile parts and assemblies
• Electroplated and galvanized coatings
• Powder coated and painted samples
• Marine hardware and industrial fittings
• Aerospace and defence components
• Stainless steel and alloy surfaces

Why Salt Spray Testing is Important

Salt spray testing helps determine how well materials and coatings resist corrosion in harsh environments.
It is a widely used accelerated corrosion test to verify coating quality where rust resistance is critical.

Using the SST-216A Salt Spray Chamber, manufacturers can validate coating strength, compare protective layers,
and improve product reliability before shipment.

What’s Included (Package)

• Salt Spray Chamber SST-216A
• Sample holding racks
• Fog collection unit
• Standard accessories set
• User manual

Why Buy from UMA Industries / Machine Control Systems

• Trusted supplier of lab & industrial testing equipment in India
• Competitive pricing with after-sales support
• Quality-tested chamber performance
• Dispatch and delivery across India
• Technical assistance for setup and operation

FAQ – Salt Spray Chamber SST-216A

Which standards does Salt Spray Chamber SST-216A support?

It supports ASTM B117, ISO 9227, and JIS Z 2371 for salt spray corrosion testing.

What products can be tested in a salt spray chamber?

Painted metals, plated parts, fasteners, automotive components, coatings, alloys, and industrial hardware.

What is the purpose of salt spray testing?

It checks corrosion resistance and verifies coating durability under accelerated salt fog conditions.

Is this chamber suitable for quality control labs?

Yes, SST-216A is suitable for QC, R&D and production validation in industrial environments.

Request Price / Quotation

For price, quotation, datasheet or custom requirements, contact UMA Industries / Machine Control Systems.

Call / WhatsApp: +91-8178668698
