UMA Industries manufactures and supplies Cable Set for Safety Light Curtain for industrial machine safeguarding, sensor wiring and controller-connected applications. Manufactured at our unit in Village Sunped, Ballabgarh, Faridabad, Haryana, India, this accessory is intended for practical installation support around safety light curtain systems used on presses, forming machines, packaging lines and other industrial equipment. UMA Industries supplies and provides technical support to customers across India, so buyers can select the right cable arrangement and controller interface before finalizing the order.

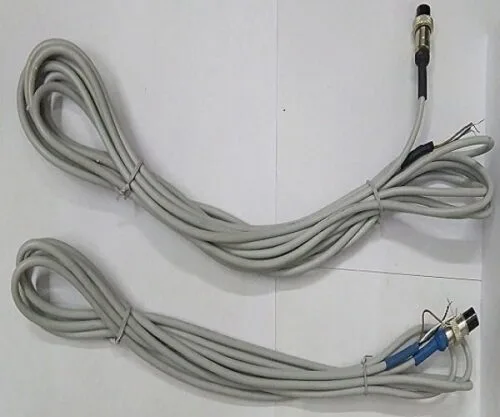

In procurement terms, the Cable Set for Safety Light Curtain is best treated as a matched accessory rather than a generic lead set. The current product information supports a standard cable arrangement of 5 meter for the emitter and 3 meter for the receiver, with suitable connectors at one end. The supplied wire colour guidance identifies red or brown for +DC, blue for -DC, black for output and white for communication. Because installation layouts differ from machine to machine, final cable routing, connector match and accessory pairing should be confirmed during quotation, where size, power supply, optional controls and accessories may be finalized according to customer requirements. Published prices on the website are company-confirmed.
Applications for Cable Set for Safety Light Curtain
The Cable Set for Safety Light Curtain supports common industrial safeguarding tasks where a safety light curtain must communicate reliably with its controller and machine stop circuit. Typical use cases include pressing lines, automated assembly stations, material handling points, packaging equipment, inspection stations and guarded access areas where an interruption in the infrared field must trigger the intended output or alarm action. The cable set is especially useful where the light curtain is installed close to the machine frame and the wiring must be organised, clearly identified and suitable for industrial use.
For buyers comparing accessories with complete curtain models, the following related pages can help with system matching:
Surrounding industrial areas and nearby buyer locations
No approved surrounding industrial areas or nearby buyer locations were supplied for this product page, so this section is limited to the verified manufacturing origin: Village Sunped, Ballabgarh, Faridabad, Haryana, India. Buyers from OEM shops, panel builders, maintenance teams and machine retrofit projects in and around Faridabad can use this page as the reference point for accessory selection and quotation alignment.
Installation guidance and wiring layout
Installation of the Cable Set for Safety Light Curtain should begin with a simple check of the machine interface, sensor position and controller terminals. The emitter and receiver cables should be routed so that they are protected from crushing, sharp edges, repeated flexing and accidental pull-out. Where the supplied connectors are used, the mating orientation should be checked carefully before tightening or securing the connection.
Practical cable routing steps
In a typical setup, the red or brown conductor is used for positive DC supply, blue for negative DC, black for output and white for communication, but the exact connection must always follow the selected light-curtain and controller documentation. Good installation practice also means keeping the cable path separate from high-noise power wiring where possible, using clean cable dressing and leaving enough slack for machine motion or maintenance access. For machine builders and maintenance teams, this accessory is most effective when selected together with the complete control package rather than as an afterthought.
Controller matching and wiring checks
Correct controller matching is central to reliable safeguarding. The Cable Set for Safety Light Curtain must suit the electrical interface expected by the sensor and controller combination. Before installation, the selected controller, output logic and connector scheme should be reviewed against the machine requirement so that polarity, communication continuity and terminal numbering are consistent. If a controller box is used, the wiring route should make the communication conductor easy to identify and the output conductor easy to trace back to the stop circuit or alarm logic.
When comparing system parts, buyers may also review Safety Light Curtain SLC-1830 and Safety Light Curtain SLC-3030 to understand how curtain length, beam arrangement and wiring access influence the final cable selection. This page is for the accessory, but the accessory works best when the full safeguarding architecture is planned together.
Alignment, bypass risks and validation
Alignment is not only about emitter and receiver positions; it also includes the integrity of the cable path and connector terminations. If a cable is strained, bent too sharply or connected loosely, the sensor may behave unpredictably even when the optical beam is aligned. That is why the Cable Set for Safety Light Curtain should be treated as part of the full safeguarding circuit rather than as a simple spare. The installation team must also review bypass risks: any temporary bridging, bypassed input or incorrect connector handling can defeat the intended safety function and must be avoided.
Selection Guidance for Cable Set for Safety Light Curtain
Validation should be performed after installation and after any maintenance change. The machine should be tested for proper interruption response, correct output behavior and stable operation through the complete scan area. The working principle of the safety light curtain remains straightforward: the transmitter sends pulses of infrared light to the receiver, and when the beam path is interrupted, the output changes to stop the machine or raise an alarm. A well-installed cable set helps preserve that response by keeping the electrical path secure, identifiable and consistent.
During commissioning, teams should confirm three things: first, the cable is correctly connected at both ends; second, the controller interprets the input and output states as intended; and third, the machine stop sequence performs correctly when the beam is interrupted. For new installations, this is the stage where the cable set, controller box and curtain model should be reviewed together. It is also the practical point to decide whether the standard cable length is sufficient or whether the machine layout needs a different harness arrangement as part of the quotation process.
Standards context and approved reference
For safety-light-curtain context, the approved external reference IEC 61496-1 — Electro-sensitive protective equipment is useful for general standards background. However, the cable set itself is an accessory, so it should not be described as certified or approved by the standard. The standard provides context for the broader safeguarding system, while the final machine application must be matched to the selected curtain, controller and wiring scheme.
When choosing the Cable Set for Safety Light Curtain, practical selection points include connector compatibility, cable length, wire identification, controller interface, environmental exposure, cable routing and the machine’s maintenance access. For retrofit work, a shorter and neater harness can simplify installation; for larger guarding layouts, routing flexibility matters more. In either case, the quotation stage is the right time to confirm optional accessories, special connector needs and any revised cable arrangement. Product selection and final configuration can be finalized during quotation or proforma invoice.
Technical overview for buyers
This accessory is best understood as part of a full safeguarding package. The cable set is associated with the transmitter and receiver path, the controller interface and the stop/alarm logic of the machine. The source information indicates standard emitter cable length 5 meter and receiver cable length 3 meter, with matching connectors at one end. Buyers should therefore treat this accessory as a configuration item that must be matched to the exact curtain model, terminal scheme and machine layout, rather than as a one-size-fits-all harness.
If a project requires a complete review, the buyer may also examine Safety Light Curtain SLC-0630, Safety Light Curtain SLC-1230 and Safety Light Curtain SLC-2430 to compare curtain family options with the related cabling and controller selection. This can reduce mismatch risk during machine build or retrofit work.
Faridabad manufacturing and pan-India support
Because the product is manufactured at UMA Industries’ unit in Village Sunped, Ballabgarh, Faridabad, Haryana, India, buyers get a direct manufacturing-origin advantage for industrial accessory sourcing. The Faridabad location is useful for OEMs, panel builders and maintenance departments that need coordinated supply of safety-related accessories, controllers and replacement parts. UMA Industries supplies and provides technical support to customers across India, which helps teams in different plants keep the light-curtain system aligned with their machine and control requirements.
Ready-stock compact products, controllers, spares and accessories may be dispatched by air courier within 3 working days, subject to availability, payment confirmation, destination serviceability and carrier schedules. This is a dispatch statement, not a guaranteed delivery promise. For complete machine packages or unusual freight arrangements, timelines are confirmed separately according to model, packing and transport mode. That flexibility is especially useful when the this product is ordered together with the controller or the complete guarding kit.
Maintenance, routine checks and safety precautions
Routine maintenance for the this product is simple but important. Inspect the cable sheath for cuts, crushing, abrasion or contamination. Check that connectors remain tight and that no conductor has been pulled partially out of a terminal. Reconfirm polarity and output continuity after maintenance on nearby machinery, because vibration and service work can affect routing. If the installation is exposed to frequent movement, the cable path should be reviewed more often so that damage is caught early.
Safety precautions are equally practical. Do not use the cable set to bypass the safeguard circuit. Do not leave the machine in service if the wiring has been altered and not revalidated. Do not assume a cable is acceptable simply because the curtain appears to be operating; proper validation must confirm the full safety response. On any change to the controller, beam count, connector style or machine logic, the complete system should be checked again before production resumes.
Quotation checklist and purchase support
If you are selecting the this product for a new machine or a retrofit, share the curtain model, controller type, terminal requirement, connector preference and required cable route. UMA Industries can then align the accessory with the installation plan and confirm the quotation accordingly. This approach works well when the buyer is comparing a single accessory against a bundled safeguarding order.
Before you finalise the order, confirm the intended beam count, cable path, machine stop logic and any accessory match with the controller box. These steps help the this product perform as part of a stable safeguarding system. For companies standardizing procurement, a clean wiring specification also makes future maintenance easier and improves replacement accuracy. For quick assistance, contact 9310530941 or 8178668698.
FAQs
What is the Cable Set for Safety Light Curtain used for?
It is used to connect the safety light curtain sensor and controller with properly identified industrial wiring so the safeguard circuit can operate reliably.
What cable lengths are supplied in this product information?
The current source states emitter cable length 5 meter and receiver cable length 3 meter, with suitable connectors at one end.
What do the wire colours indicate?
The supplied guidance says red or brown is for +DC, blue is for -DC, black is output and white is communication.
Can the cable set be used with any safety light curtain?
No. The this product should be matched with the correct curtain model, controller interface and connector arrangement.
Is the accessory a certified safety device by itself?
No. It is an accessory for the safeguarding system. The IEC 61496-1 reference is useful for standards context, but the cable set itself should not be described as certified.
What should be checked during installation?
Check polarity, terminal matching, connector fit, cable routing, output continuity and the controller’s expected logic before commissioning.
Why is controller matching important?
Because the wrong controller, connector or output logic can prevent the safety light curtain from working correctly or cause nuisance trips.
How does UMA Industries support buyers after purchase?
UMA Industries supplies and provides technical support to customers across India, helping with selection, wiring logic and accessory matching.
For industrial safeguarding projects, the this product should be selected with the curtain, controller and machine layout in mind so the wiring, validation and maintenance steps stay straightforward. If you need the right accessory combination, request a quotation and confirm the installation details before dispatch. Manufactured in Village Sunped, Ballabgarh, Faridabad, Haryana, India, with pan-India supply and technical support for industrial machine safeguarding applications.
Warranty: For Safety Light Curtain products, the supplied transmitter and receiver safety sensor assembly is covered only according to the warranty terms confirmed in the quotation or proforma invoice. Contact UMA Industries for Cable Set for Safety Light Curtain selection and quotation.
Cable Set for Safety Light Curtain can be finalized against the process requirement recorded in the quotation or proforma invoice.
