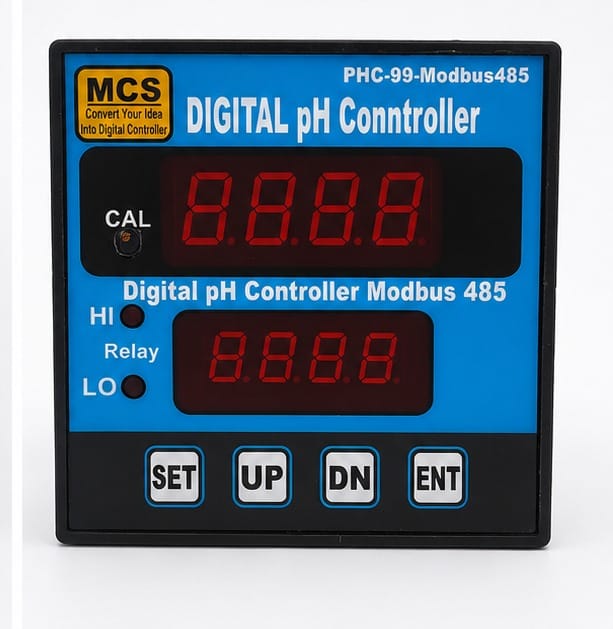

RS 485 Modbus RTU pH Controller
RS 485 Modbus RTU pH Controller is an industrial online pH measuring and controlling instrument used for continuous pH monitoring, acid dosing, alkali dosing, alarm output and PLC/SCADA communication. It measures pH value from a pH sensor and provides control output through relay, while also sending digital pH data through RS485 Modbus RTU communication.
UMA Industries supplies RS485 pH controllers, online pH controllers, pH meters, pH sensors, pH electrodes, relay-output controllers and industrial water-quality instruments for RO plants, ETP/STP plants, chemical dosing systems, effluent neutralisation, process-water systems and automation panels.
The RS 485 Modbus RTU pH Controller is suitable where pH value must be measured continuously and also used for automatic control. It can be connected with PLC, HMI, SCADA, data logger or IoT gateway through RS485 Modbus RTU communication.
Technical Specifications of RS 485 Modbus RTU pH Controller
- Product Name: RS 485 Modbus RTU pH Controller
- Measurement Parameter: pH
- Measurement Range: 0.00 to 14.00 pH
- Resolution: 0.01 pH
- Display: Digital LED display
- Communication: RS485 Modbus RTU
- Sensor Input: pH electrode / pH sensor
- Calibration: Two-point calibration using 4.00 pH and 7.00 pH buffer solutions
- Control Output: Relay output for dosing, alarm or interlock
- Control Application: Acid dosing, alkali dosing, alarm and process control
- Mounting: Panel-mounted online type
- Panel Size: 96 x 96 mm standard panel mounting, model dependent
- Power Supply: 220–230 VAC, 50 Hz, or as per model design
- Optional Output: 4-20 mA or 0-10 VDC as per requirement
- Application: RO, ETP, STP, chemical dosing, process water and industrial automation
What is RS 485 Modbus RTU pH Controller?
RS 485 Modbus RTU pH Controller is an online pH controller with digital communication. It reads the pH sensor signal, displays the pH value, compares the value with selected set point and operates relay output according to the control logic.
The RS485 Modbus RTU communication allows the pH value to be read by PLC, HMI, SCADA, data logger or IoT gateway. This makes the controller suitable for modern industrial automation systems where local pH control and remote data monitoring are both required.
How RS 485 Modbus RTU pH Controller Works
- The pH sensor is installed in a tank, pipeline, flow cell or sample chamber.
- The pH sensor generates a signal according to the acidity or alkalinity of the liquid.
- The pH controller reads the sensor signal and displays pH value.
- The controller compares the reading with the selected set point.
- If the pH crosses the set point, the relay output operates.
- The relay can operate acid dosing pump, alkali dosing pump, buzzer, alarm or interlock.
- The RS485 Modbus RTU output sends pH value to PLC, HMI or SCADA.
- The automation system can display, log, trend and use the pH value in control logic.
RS485 Modbus RTU Communication
RS485 Modbus RTU is a common industrial communication system used between field instruments and automation devices. A RS 485 Modbus RTU pH Controller can be connected to a PLC, HMI, SCADA system, data logger or IoT gateway to read pH values digitally.
Communication parameters such as slave ID, baud rate, parity and register address must be configured according to the controller and master device. Multiple Modbus instruments can be connected on the same RS485 communication line when each instrument has a unique slave ID.
Applications of RS 485 Modbus RTU pH Controller
RO Plants
RO plants use pH controllers for chemical dosing, pH correction, treated-water monitoring and process automation. RS485 communication helps transfer pH readings to PLC or HMI panels.
ETP Plants
Effluent-treatment plants use pH controllers for neutralisation, acid dosing, alkali dosing and treated-water discharge control. Modbus communication supports data logging and SCADA monitoring.
STP Plants
Sewage-treatment plants use online pH controllers for process monitoring, dosing control, treated-water checking and centralized reporting.
Acid Dosing Systems
The controller can operate a dosing pump through relay output when acid dosing is required according to selected pH set point and control direction.
Alkali Dosing Systems
The controller can also be used for alkali dosing where pH value must be increased or maintained within required process limit.
Neutralisation Tanks
Neutralisation tanks in ETP and chemical plants use pH controllers to maintain pH within discharge or process limits.
Cooling Towers
Cooling-tower systems use pH control for water-treatment chemistry, scaling control and corrosion control.
Boiler Water Treatment
Boiler-water treatment systems use pH control to maintain correct water chemistry and support safe operation.
Chemical Process Industries
Chemical industries use pH controllers for batch processing, reaction control, dilution systems and wastewater neutralisation.
PLC, HMI and SCADA Panels
System integrators use RS485 pH controllers in control panels where pH measurement, relay control and digital communication are required together.
Why Choose Our RS 485 Modbus RTU pH Controller?
- Online pH measurement and pH control in one instrument
- RS485 Modbus RTU communication
- Suitable for PLC, HMI, SCADA and data logging
- Relay output for dosing, alarm or interlock
- 0.00 to 14.00 pH measurement range
- 0.01 pH resolution
- Two-point calibration using 4.00 and 7.00 pH buffers
- Suitable for acid dosing and alkali dosing
- Useful for RO, ETP, STP and process-water systems
- Panel-mounted industrial design
Difference Between pH Meter and pH Controller
A pH meter measures and displays the pH value. A pH controller measures pH and also gives output for control action. The control output may operate a dosing pump, alarm, relay, solenoid or machine interlock.
If the application only needs display and communication, a pH meter may be enough. If the application needs acid dosing, alkali dosing, alarm or automatic control, a RS 485 Modbus RTU pH Controller is more suitable.
Difference Between RS485 pH Controller and Analog pH Controller
An analog pH controller may provide 4-20 mA or 0-10 VDC output for PLC or recorder input. A RS 485 Modbus RTU pH Controller sends digital pH data through RS485 Modbus communication.
RS485 Modbus is useful for SCADA systems, multi-instrument communication, digital logging and automation panels where multiple devices must communicate on one communication network.
Compatible pH Sensors and Instruments
- pH Sensor and Electrode – Replacement electrode for pH meters and pH controllers.
- Digital pH Meter Online – For continuous pH indication.
- pH Meter with 4-20 mA Output – For PLC and recorder systems.
- pH Meter with 0-10 VDC Output – For analog monitoring systems.
- pH Controller with One Relay – For dosing and alarm control.
- pH Controller with Two Relay Outputs – For acid and alkali dosing control.
- pH Controller with Dosing Quantity and Delay – For controlled dosing applications.
View more instruments in our pH Controller category and pH Meter category.
pH Controller with Dosing Pump
The RS 485 Modbus RTU pH Controller can operate a dosing pump through relay output. The dosing pump can dose acid or alkali depending on the selected control logic. This is commonly used in ETP neutralisation tanks, RO chemical dosing systems, process tanks and wastewater treatment systems.
Correct selection of dosing pump capacity, chemical strength, tank volume, mixing time and controller set point is important for stable pH control. For accurate operation, the pH sensor should be installed at a location where the liquid is properly mixed.
Installation Instructions
- Install the pH controller in a clean and protected control panel.
- Install the pH sensor in a tank, flow cell, pipeline or sample chamber.
- Keep the pH electrode bulb continuously wet during operation.
- Avoid sensor installation where air bubbles collect around the glass bulb.
- Keep pH sensor cable away from motor, VFD, contactor and high-voltage wiring.
- Use shielded cable where electrical noise is present.
- Wire relay output according to dosing pump, alarm or interlock requirement.
- Connect RS485 A and B terminals correctly to PLC, HMI or SCADA.
- Set correct slave ID, baud rate and communication parameters.
- Calibrate the pH controller before process operation.
Calibration Procedure for RS 485 Modbus RTU pH Controller
Prepare the pH Sensor
- Connect the pH electrode to the pH controller.
- Switch ON the controller and allow the display to stabilise.
- Remove the pH electrode from storage solution.
- Rinse the glass bulb with clean or distilled water.
- Do not rub the pH glass bulb.
Calibrate at 7.00 pH
- Take fresh 7.00 pH buffer solution in a clean beaker.
- Dip the pH sensor into the buffer solution.
- Wait until the reading becomes stable.
- Adjust the 7 pH calibration setting.
- Set the display to exactly 7.00 pH.
Calibrate at 4.00 pH
- Remove the sensor from 7.00 pH buffer.
- Rinse the sensor with clean water.
- Dip the sensor into fresh 4.00 pH buffer solution.
- Wait until the reading becomes stable.
- Adjust the 4 pH or slope setting.
- Set the display to exactly 4.00 pH.
Final Verification
- Recheck the reading in 7.00 pH buffer.
- Install the sensor in the process.
- Check relay operation according to set point.
- Check RS485 Modbus value on PLC, HMI or SCADA screen.
- Confirm that local display and Modbus reading match correctly.
RS485 Wiring Precautions
- Use twisted-pair cable for RS485 communication.
- Connect A and B terminals correctly.
- Do not run RS485 cable with motor or high-voltage cables.
- Use proper shielding and earthing practice.
- Use unique slave ID for every Modbus instrument.
- Keep baud rate, parity and stop-bit settings same in all devices.
- Avoid long star-type wiring in RS485 networks.
- Use termination resistor where required by network length and site condition.
pH Sensor Storage and Maintenance
- Keep the pH electrode bulb wet when not in use.
- Store the pH sensor in proper electrode-storage solution.
- Do not keep pH electrode dry for long periods.
- Do not store pH electrode in distilled water or DM water for long-term storage.
- Clean the pH sensor according to process contamination.
- Use fresh 4.00 and 7.00 pH buffer solutions for calibration.
- Replace the pH sensor if calibration is not stable after cleaning.
Common Problems and Troubleshooting
- pH reading unstable: Check pH sensor, cable shielding, grounding and process flow.
- Calibration not possible: Clean or replace pH electrode and use fresh buffer solution.
- Relay not operating: Check set point, relay wiring and control direction.
- Dosing pump not starting: Check relay contact, pump supply and interlock wiring.
- No Modbus communication: Check RS485 A/B wiring, slave ID, baud rate and parity.
- PLC value not matching display: Check register address, scaling and data format.
- Communication intermittent: Check cable shielding, termination, earthing and electrical noise.
Industries Using RS 485 Modbus RTU pH Controller
- RO plant manufacturers
- ETP and STP contractors
- Water-treatment companies
- PLC and SCADA system integrators
- Control-panel manufacturers
- Chemical industries
- Pharmaceutical industries
- Food and beverage industries
- Electroplating and surface-treatment units
- Textile and dyeing industries
- Cooling-tower water-treatment companies
- Boiler-water treatment companies
7 Powerful Benefits of RS 485 Modbus RTU pH Controller
- Online pH measurement and control
- RS485 Modbus RTU digital communication
- Relay output for dosing pump or alarm
- Suitable for PLC, HMI, SCADA and data logging
- Useful for acid and alkali dosing control
- Suitable for RO, ETP, STP and process-water systems
- Easy integration in industrial automation panels
FAQs About RS 485 Modbus RTU pH Controller
What is RS 485 Modbus RTU pH Controller?
It is an online pH controller with RS485 Modbus RTU communication, relay output and pH measurement for dosing, alarm and automation applications.
What is the pH measurement range?
The standard pH measurement range is 0.00 to 14.00 pH.
What is the resolution?
The common resolution is 0.01 pH.
Can it connect to PLC?
Yes, the pH value can be read by PLC through RS485 Modbus RTU communication.
Can it connect to HMI or SCADA?
Yes, it can be connected to HMI or SCADA system through RS485 Modbus RTU if communication settings and registers are configured correctly.
Can it operate a dosing pump?
Yes, relay output can operate a dosing pump for acid or alkali dosing according to set point and control logic.
Can it be used in ETP neutralisation?
Yes, it is suitable for ETP neutralisation tanks where pH must be controlled by acid or alkali dosing.
Can it be used in RO plants?
Yes, it is suitable for RO plants for pH monitoring, dosing correction and automation.
Does it require calibration?
Yes, calibration is required using fresh 7.00 pH and 4.00 pH buffer solutions.
What is the difference between RS485 pH controller and normal pH controller?
A normal pH controller provides local display and relay output. RS485 pH controller additionally sends pH data digitally to PLC, HMI or SCADA through Modbus RTU.
Can multiple RS485 instruments be connected together?
Yes, multiple RS485 Modbus instruments can be connected on one network if every device has a unique slave ID and correct communication parameters.
Do you supply throughout India?
Yes, UMA Industries supplies RS 485 Modbus RTU pH Controller, pH meters, pH sensors and industrial water-quality instruments throughout India.
