Salt Spray Test Chamber 390 Liter

Salt Spray Test Chamber 390 Liter (SST-390A) – PLC HMI Model | UMA Industries Faridabad

The SST-390A Salt Spray Test Chamber (390 Liter) is a premium
salt spray test chamber / salt fog chamber / corrosion test chamber
designed and manufactured by UMA Industries and Machine Control Systems (MCS),
Faridabad (India), and supplied through phmeters.in.

This advanced salt spray chamber is ideal for laboratories and industries that need reliable,
repeatable corrosion resistance testing as per ASTM B117 and ISO 9227.
It is widely used for neutral salt spray (NSS) testing of ferrous and non-ferrous metals,
coatings, paints, platings and surface treatments in automotive, fastener, hardware, plating,
powder-coating and metal finishing units.

Highlights – Salt Spray Test Chamber 390 Liter (SST-390A)

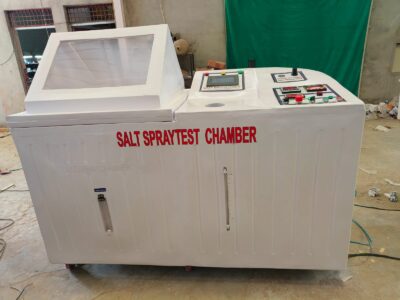

• Chamber capacity: 390 Liter (overall size approx. 6 ft × 3 ft × 4 ft)
• Standards: ASTM B117 and ISO 9227 (NSS)

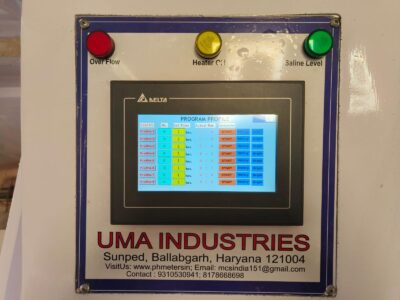

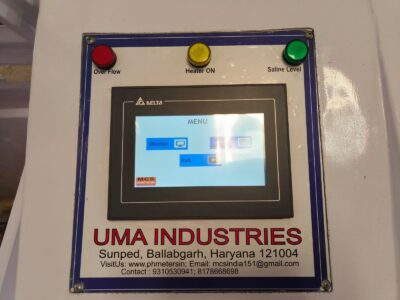

• PLC operated system with coloured HMI touch screen
• Automatic door opening by switch and pneumatic cylinders
• Graphical display for time, temperature and humidity trends

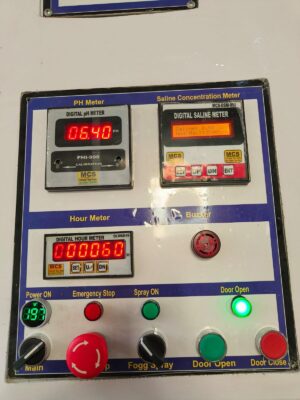

• Digital pH meter for monitoring brine (salt) solution
• Saline concentration meter to display salt concentration
• Long-term data memory with USB port for pen-drive export
• Rugged construction and easy maintenance for industrial use

Technical Specifications – SST-390A Salt Spray Chamber

• Capacity: 390 Liter
• Internal size (L × W × H): 730 × 730 × 730 mm
• Overall machine size (approx.): 1800 × 900 × 1200 mm
• Main chamber: PP / FRP moulded body – anti-corrosive and durable
• Top cover: 5 mm clear acrylic transparent lid
• Sample mounting: 8–9 hangers / rods (depending on job size)
• Separate main water tank: 60–80 Liters (as provided)
• Power supply: 220 VAC, single phase
• Warranty: 1 year against manufacturing defects

Water System & Tank (as provided)

• Low saline level indication
• Automatic filling and level maintaining system using sensors
• Automatic drainage system for chamber waste water
• Compressed air circulation in saline tank for uniform concentration

Control & Safety (as provided)

• Fully automatic temperature control with over-temperature warning
• Separate indication for chamber temperature and humidity
• Shock-free, anti-corrosion long-life heaters (no glass heater design)
• Centralized fogging system as per ISO 9227 / ASTM B117
• Standard fog collection system with collectors / funnels
• Automatic fog operation controlled by process ON / OFF
• Hour meter up to 999 hours 59 minutes (model dependent)
• Process complete buzzer and indicator

Working Principle – Salt Spray / Corrosion Test (ASTM B117 / ISO 9227)

1) Scope

Salt spray testing is used for corrosion resistance evaluation of ferrous and non-ferrous metals
and for testing organic and inorganic coatings such as paint, powder coating, electroplating,
anodizing and conversion coatings.

2) Apparatus

• Closed fog chamber
• Salt solution reservoir and circulation system
• Oil-free, dust-free air supply with filter/regulator
• Atomizing nozzle(s) for salt fog generation
• Specimen supports / hangers
• Heaters and control system
• Monitoring for temperature, humidity, time, pH and fog rate

3) Temperature Control

For NSS testing, the exposure zone is maintained around 35 ± 2 °C.
The controller keeps operating conditions stable for repeatable results.

4) pH Control of Salt Solution

ASTM B117 requires collected solution pH between 6.5 to 7.2 when atomized around 35 °C.
The SST-390A includes pH monitoring to help maintain this neutral range.

5) Atomization and Fog Quantity

For every 80 cm² (4-inch funnel) horizontal collecting area, collected solution should be
1.0 to 2.0 mL per hour averaged over at least 16 hours (ASTM B117).

Standards reference (dofollow):
ASTM B117 |
ISO 9227

Models in Our Salt Spray / Corrosion Test Chamber Range

• Salt Spray Chamber 162A – Standard Laboratory Model
• Salt Spray Chamber 162B – ASTM B117
• Salt Spray Chamber 216A
• Salt Spray Chamber 216B – ASTM B117
• Salt Spray / Corrosion Chamber 240A
• Salt Spray Chamber 1KB – Graphical Display
• Custom chamber sizes can be manufactured on request

FAQ – Salt Spray Test Chamber SST-390A
