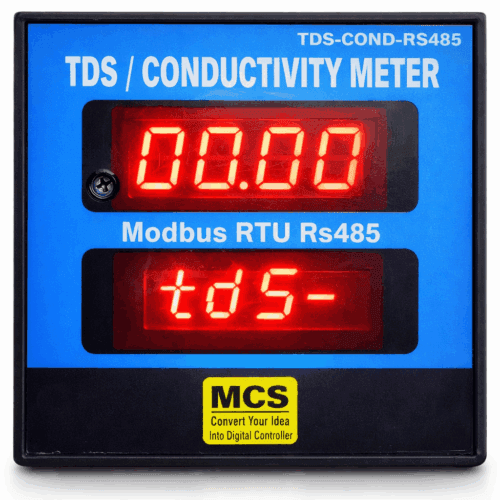

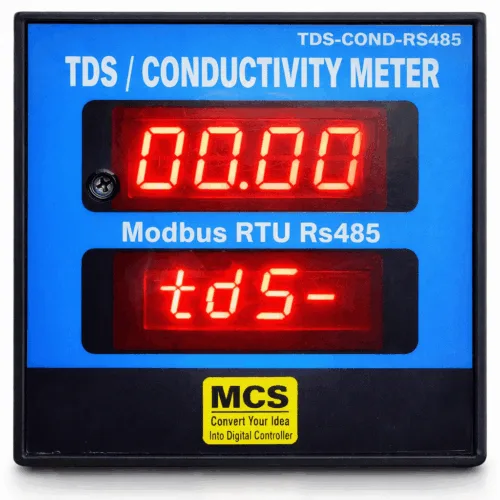

TDS Meter Modbus RTU RS485
TDS Meter Modbus RTU RS485 is an industrial online instrument used for continuous monitoring of Total Dissolved Solids in water-treatment plants, RO plants, DM plants, ETP/STP systems, cooling towers, boiler-water systems and process-water applications. UMA Industries supplies digital TDS meters, online TDS indicators, TDS controllers, conductivity meters, pH meters, ORP meters and industrial water-quality instruments for automation panels and SCADA systems.
A TDS meter with RS485 Modbus RTU communication is useful where water-quality data must be transferred to PLC, HMI, SCADA, data logger, remote monitoring system or IoT dashboard. It reduces manual checking and helps operators monitor real-time water quality from the control room.
The TDS Meter Modbus RTU RS485 is suitable for industrial water-treatment applications where dissolved solids need continuous observation, alarm generation, trend monitoring and remote data collection.
Technical Specifications of TDS Meter Modbus RTU RS485
- Product Name: TDS Meter Modbus RTU RS485
- Measurement Parameter: TDS / Total Dissolved Solids
- Display: Digital LED display
- Communication: RS485 Modbus RTU
- Protocol: Modbus RTU slave communication
- Output: RS485 digital output for PLC, HMI and SCADA
- Optional Output: 4-20 mA or 0-10 VDC, depending on model
- Sensor Input: Conductivity/TDS sensor input
- Mounting: Panel-mounted online type
- Panel Size: 96 mm × 96 mm × 85 mm
- Operating Supply: 220-230 VAC, 50 Hz
- Calibration: Front-panel calibration facility
- Applications: RO, DM plant, ETP, STP, cooling tower, boiler feed water and process water
What is TDS Meter Modbus RTU RS485?
TDS Meter Modbus RTU RS485 is an online TDS measuring instrument with digital communication. It measures dissolved solids in water and sends the measured value to a PLC, HMI, SCADA system or remote monitoring unit through RS485 Modbus RTU communication.
In industrial water-treatment plants, TDS value is important because it indicates the concentration of dissolved salts, minerals and ionic impurities in water. Higher TDS may indicate poor RO performance, membrane issue, chemical contamination, improper water treatment or process-water quality problem.
Why RS485 Modbus RTU is Used in TDS Meter
- RS485 supports long-distance industrial communication.
- Multiple instruments can be connected on the same communication line.
- Modbus RTU is widely supported by PLC, HMI and SCADA systems.
- Digital data transfer gives better integration than manual reading.
- Useful for online reporting, data logging and remote monitoring.
- Reduces manual checking and operator dependency.
- Suitable for automation panels and industrial control systems.
Applications of TDS Meter Modbus RTU RS485
RO Plants
RO plants use TDS Meter Modbus RTU RS485 for continuous monitoring of feed water, permeate water, reject water and final treated water. The instrument helps operators check RO membrane performance and treated-water quality.
DM Water Plants
DM plants use TDS meters and conductivity instruments to monitor dissolved solids and ionic impurities in demineralised water systems.
ETP and STP Plants
Effluent-treatment and sewage-treatment plants use online TDS monitoring for treated-water quality checking, discharge monitoring and process-control applications.
Cooling Towers
Cooling-tower systems use TDS measurement to manage blowdown, chemical dosing, scaling control and water-treatment efficiency.
Boiler Feed Water
Boiler systems require water-quality monitoring to reduce scaling, corrosion and process disturbance. TDS monitoring supports proper feed-water and blowdown control.
Food and Beverage Industries
Food and beverage industries use online TDS meters for treated water, process water, RO water and quality-control applications.
Pharmaceutical Utilities
Pharmaceutical plants use TDS and conductivity monitoring for utility water, RO water, DM water and process-support systems.
Chemical and Process Industries
Chemical industries use TDS meters for process water, wastewater, chemical dilution, washing systems and treated-water monitoring.
Textile and Dyeing Industries
Textile and dyeing plants use TDS monitoring for process water, washing water, dyeing-water quality and effluent-treatment systems.
Industrial Automation Panels
Panel builders and system integrators use TDS Meter Modbus RTU RS485 in PLC-based water-treatment panels, remote monitoring panels and SCADA systems.
Advantages of TDS Meter Modbus RTU RS485
- Continuous online TDS measurement
- Digital RS485 Modbus RTU communication
- Easy connection with PLC, HMI and SCADA
- Suitable for remote water-quality monitoring
- Helps in RO performance checking
- Useful for trend recording and data logging
- Reduces manual testing frequency
- Panel-mounted industrial design
- Suitable for RO, ETP, STP and process-water systems
- Optional analog output models available
How TDS Meter Modbus RTU RS485 Works
The TDS sensor is installed in the water line, flow cell or sample chamber. The instrument measures the electrical conductivity of the water and converts it into TDS value according to the selected range and calibration. The measured value is displayed on the digital display and transmitted through RS485 Modbus RTU communication.
The PLC or SCADA system reads the instrument value using Modbus register communication. This data can be displayed on HMI, stored in a data logger, used for alarm generation or transferred to an online monitoring dashboard.
Typical Modbus RTU Integration
- Device Type: Modbus RTU slave
- Communication Port: RS485 two-wire communication
- PLC/HMI Role: Modbus RTU master
- Typical Parameters: Slave ID, baud rate, parity, data bits and stop bits
- Wiring: A/B RS485 communication line with proper polarity
- Recommended Cable: Twisted-pair shielded communication cable
Installation Instructions for TDS Meter Modbus RTU RS485
- Install the TDS meter in a clean and dry control panel.
- Install the TDS sensor in a proper flow cell or sample line.
- Ensure continuous water flow around the sensor.
- Avoid air bubbles around the sensing area.
- Keep the sensor cable away from motor, VFD and high-voltage wiring.
- Use shielded cable for RS485 communication.
- Connect RS485 A and B terminals correctly.
- Use proper grounding in the electrical panel.
- Set slave ID, baud rate and communication parameters as per PLC/HMI requirement.
- Verify reading locally before connecting to SCADA or PLC.
Calibration Procedure for TDS Meter
- Switch ON the TDS meter and allow the reading to stabilise.
- Clean the TDS sensor properly before calibration.
- Use a standard TDS or conductivity calibration solution.
- Dip the sensor into the calibration solution.
- Wait until the reading becomes stable.
- Adjust the calibration setting according to the standard solution value.
- Rinse the sensor with clean water after calibration.
- Recheck the reading to confirm calibration accuracy.
Work Instructions and Precautions
- Clean the TDS sensor regularly according to water contamination.
- Do not install the sensor where air bubbles are continuously present.
- Do not run RS485 communication cable with power cable in the same conduit.
- Use proper termination resistance where long RS485 cable length is used.
- Protect the instrument from water splash, dust and chemical fumes.
- Use fresh and correct-value standard solution for calibration.
- Check sensor scaling or fouling in high-TDS water applications.
- Verify Modbus communication settings before troubleshooting wiring.
- Replace the sensor if readings become unstable or incorrect after cleaning and calibration.
Difference Between TDS Meter and Conductivity Meter
A conductivity meter measures the electrical conductivity of water, normally in µS/cm or mS/cm. A TDS meter displays the dissolved solids value, generally in ppm or mg/L, based on conductivity conversion. Many industrial water-treatment systems use both conductivity and TDS measurement depending on the application requirement.
Difference Between TDS Meter and TDS Controller
A TDS Meter Modbus RTU RS485 measures, displays and transmits the TDS value. A TDS controller may also provide relay output for alarm, dosing, valve control, reject control or process interlocking. For automatic control applications, relay-output controller models can be selected.
Related Water Quality Instruments
- Digital pH Meter Online – For continuous pH measurement in water and process liquids.
- pH Meter with 4-20 mA Output – For PLC, recorder and SCADA systems.
- RS485 Modbus RTU pH Controller – For PLC, HMI and SCADA integration.
- pH Controller with One Relay – For chemical dosing and alarm applications.
- pH Controller with Two Relay Outputs – For acid and alkali dosing control.
- pH Sensor and Electrode – Replacement electrode for pH meters and controllers.
View more instruments in our pH Meter product category.
Industries Using TDS Meter Modbus RTU RS485
- RO plant manufacturers
- DM plant manufacturers
- ETP and STP contractors
- Water-treatment companies
- Pharmaceutical industries
- Food and beverage industries
- Chemical industries
- Textile and dyeing industries
- Cooling-tower chemical-treatment companies
- Boiler-water treatment companies
- System integrators and automation companies
- PLC, HMI and SCADA panel manufacturers
7 Powerful Benefits of TDS Meter Modbus RTU RS485
- Continuous online TDS monitoring
- Direct RS485 Modbus RTU communication
- Easy PLC, HMI and SCADA integration
- Better RO and water-treatment performance tracking
- Reduced manual water testing
- Useful for alarm, trend and data-logging systems
- Suitable for industrial automation panels
FAQs About TDS Meter Modbus RTU RS485
What is TDS Meter Modbus RTU RS485?
It is an online TDS measuring instrument with RS485 Modbus RTU digital communication for PLC, HMI, SCADA and data-logging systems.
Where is this TDS meter used?
It is used in RO plants, DM plants, ETP plants, STP plants, cooling towers, boiler-water systems, process-water systems and industrial automation panels.
Can it connect with PLC?
Yes, the instrument can communicate with PLC through RS485 Modbus RTU communication.
Can it connect with HMI?
Yes, HMI panels that support Modbus RTU master communication can read data from the TDS meter.
Can it connect with SCADA?
Yes, SCADA systems can read TDS values through PLC or direct Modbus RTU communication, depending on the system design.
What cable is recommended for RS485?
Twisted-pair shielded communication cable is recommended for RS485 Modbus RTU communication.
Is 4-20 mA output also available?
Yes, 4-20 mA output can be provided in suitable models depending on application requirement.
Is 0-10 VDC output available?
Yes, 0-10 VDC output can be provided in suitable models for analog monitoring applications.
Does the TDS meter need calibration?
Yes, calibration is required using standard TDS or conductivity solution to maintain measurement accuracy.
What is the difference between TDS and conductivity?
Conductivity is the electrical conductivity of water. TDS is a calculated dissolved-solids value based on conductivity conversion.
Can this meter be used for RO permeate water?
Yes, it can be used for RO permeate water monitoring if the correct range and sensor are selected.
Can this meter be used for high-TDS water?
Yes, high-TDS applications can be handled by selecting the correct sensor and instrument range.
