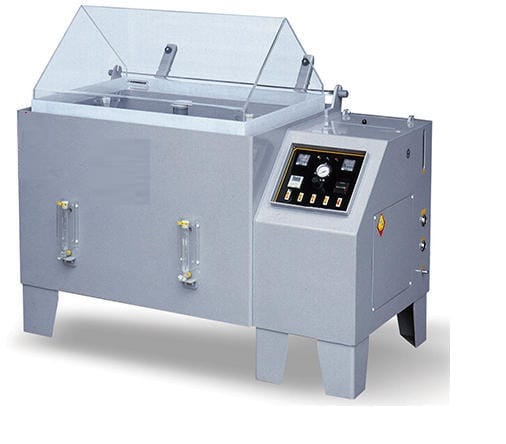

Salt Spray Chamber Asansol
Salt Spray Chamber Asansol is an industrial corrosion-testing instrument used to evaluate the comparative corrosion resistance of metals, electroplated components, painted parts, powder-coated products, fasteners, fabricated assemblies and protective surface finishes.
UMA Industries supplies salt spray test chambers for steel plants, engineering industries, coal-equipment manufacturers, railway-component units, electroplating plants, paint and powder-coating facilities, fastener manufacturers, fabrication companies, testing laboratories and quality-control departments in Asansol and nearby industrial areas.
Our corrosion chambers are available in basic digital, ASTM-oriented industrial and touch-screen programmable configurations. Chambers can be selected according to specimen size, testing volume, required controls, applicable standard and laboratory documentation requirements.
Technical Specifications of Salt Spray Chamber Asansol
- Test Type: Salt spray or salt-fog corrosion testing
- Chamber Construction: Corrosion-resistant non-metallic body
- Test Temperature: Commonly controlled around 35°C for neutral salt spray testing
- Temperature Controller: Digital PID or programmable touch-screen controller, depending on model
- Salt-Fog Generation: Compressed-air atomisation system
- Air Saturator: Heated humidification arrangement with pressure regulation
- Specimen Supports: Adjustable, non-corrosive sample holders
- Fog Collection: Collection funnels with graduated measuring cylinders
- Test Timer: Digital or programmable test-duration control
- Solution Reservoir: External or integrated reservoir, depending on model
- Water-Level Protection: Available according to selected model
- Low-Solution Alarm: Available according to selected model
- Power Supply: 220–230 VAC, 50 Hz, subject to chamber capacity
- Optional Features: Touch screen, alarms, data logging, automatic filling and remote monitoring
Important: Chamber dimensions, electrical load, compressor capacity, controller type, accessories and construction details must be confirmed against the selected chamber model before ordering.
Salt Spray Chamber Supply in Asansol Industrial Areas
We supply Salt Spray Chamber Asansol to steel industries, mining-equipment manufacturers, railway-component units, engineering companies, fabrication workshops, coating plants, electroplating units and testing laboratories throughout Asansol and the surrounding industrial belt.
Asansol Industrial and Manufacturing Areas
Our local supply coverage includes Asansol Industrial Area, Kanyapur, Chelidanga, Ushagram, Mohishila, South Dhadka, North Dhadka, Domohani, Kalipahari, Gopalpur, Jamuria Road and nearby engineering and manufacturing locations.
Burnpur Steel and Engineering Belt
We supply corrosion-test chambers to Burnpur, Hirapur, Riverside, Ram Bandh, Narsinghbandh, Chhotodighari and the steel-plant support, fabrication and maintenance industries around Burnpur.
Raniganj and Mangalpur Industrial Areas
Our coverage includes Raniganj, Mangalpur Industrial Area, Ballavpur, Egara, Ratibati, Kunustoria, Satgram, Bahula and nearby coal, engineering, fabrication and component-manufacturing units.
Jamuria Industrial Belt
We supply to Jamuria, Jamuria Industrial Area, Ikra, Churulia, Kunustoria, Sripur and nearby mining-equipment, repair, fabrication and manufacturing facilities.
Kulti, Barakar and Salanpur Industrial Areas
Our supply network covers Kulti, Barakar, Sitarampur, Dishergarh, Neamatpur, Chinakuri, Salanpur, Rupnarayanpur and surrounding industrial, mining and engineering locations.
Chittaranjan and Railway-Engineering Region
We also serve Chittaranjan, Mihijam, Rupnarayanpur and nearby railway-component, electrical, engineering and fabrication industries.
Andal, Pandabeswar and Durgapur Belt
Customers may contact us from Andal, Kajora, Pandabeswar, Durgapur, Muchipara, Rajbandh, Panagarh Industrial Park, Kanksa and Budbud.
Nearby Industrial Cities and Manufacturing Hubs
We also supply salt spray chambers to Dhanbad, Jharia, Sindri, Bokaro, Purulia, Raghunathpur, Bankura, Barjora, Mejia, Bardhaman, Howrah and Kolkata.
We provide model-selection assistance, dispatch support, installation guidance, operating instructions and technical support according to specimen dimensions, testing volume and applicable corrosion-test procedure.
Why Choose Our Salt Spray Chamber in Asansol?
- Corrosion-resistant chamber construction
- Stable test-chamber temperature control
- Uniform and adjustable salt-fog generation
- Digital control of test duration
- Non-corrosive specimen racks and supports
- Fog-collection monitoring arrangement
- Basic, industrial and touch-screen models available
- Multiple chamber capacities available
- Suitable for production and laboratory quality control
- Installation and operating guidance available
Applications of Salt Spray Chamber Asansol
Steel and Alloy Industries
Steel and alloy industries use salt spray chambers to evaluate coated sheets, fabricated parts, plated components, treated surfaces and protective finishing systems.
Mining and Heavy-Equipment Components
Manufacturers of mining equipment use corrosion testing for brackets, fasteners, housings, fabricated assemblies, painted parts and exposed metal components.
Railway and Locomotive Components
Railway-component and locomotive-support industries use salt spray testing for plated hardware, fasteners, electrical enclosures, fabricated parts and coating systems.
Electroplating Industries
Electroplating units use salt-fog testing to compare zinc, nickel, chrome and other protective coatings and monitor plating-process consistency.
Paint and Powder-Coating Units
Paint and coating facilities use salt spray chambers to evaluate pretreatment quality, coating durability, corrosion spread and coating-system performance.
Fastener Manufacturers
Manufacturers of bolts, nuts, screws, washers and industrial hardware use salt spray tests for coating comparison, batch validation and customer-specific testing.
Engineering and Fabrication Companies
Engineering companies use corrosion chambers for testing painted, plated, phosphated and chemically treated components before approval or dispatch.
Electrical Panels and Enclosures
Electrical-panel manufacturers use salt-fog testing to evaluate enclosures, locks, hinges, fasteners, terminals and protective metallic finishes.
Automobile and Auto-Component Industries
Automotive-component manufacturers use corrosion testing for brackets, clips, fasteners, coated panels, plated parts and underbody components.
Testing and Research Laboratories
Industrial and third-party laboratories use salt spray chambers for material comparison, process validation, supplier approval and documented customer testing.
Types of Salt Spray Chambers Available
Basic Digital Salt Spray Chamber
The basic digital model is suitable for routine salt-fog testing and generally includes digital temperature control, test timer, atomising system, air saturator and specimen holders.
ASTM-Oriented Salt Spray Chamber
This chamber includes enhanced control and monitoring arrangements to support salt-fog testing under procedures such as ASTM B117, subject to proper calibration, laboratory practices and selected configuration.
Touch-Screen Salt Spray Chamber
The touch-screen model can provide programmable operation, digital alarms, parameter display, test-status monitoring and optional data-recording features.
Custom Salt Spray Chamber
Custom chamber configurations can be considered for larger specimens, special racks, higher testing capacity or customer-specific laboratory requirements.
Available Salt Spray Chamber Capacities
- Small Chamber: Suitable for fasteners, small plated samples and compact components
- Medium Chamber: Suitable for automotive, fabricated, painted and coated components
- Large Chamber: Suitable for larger assemblies, panels and high-volume quality-control laboratories
The correct capacity should be selected according to specimen dimensions, specimen quantity, spacing, orientation, testing frequency and future workload.
Common Salt Spray Test Standards
- ASTM B117: Practice for operating salt spray or salt-fog apparatus
- ISO 9227: Corrosion tests in artificial atmospheres using salt spray
- JIS Z 2371: Salt spray testing method
- Customer Specifications: Automotive, railway, fastener, paint and engineering test requirements
A salt spray operating standard defines the apparatus and controlled test environment. The product specification, drawing or customer test requirement should define the test duration, sample preparation and acceptance criteria.
General Neutral Salt Spray Test Conditions
- Chamber Temperature: Commonly maintained near 35°C
- Test Solution: Sodium chloride solution prepared according to the applicable standard
- Solution pH: Adjusted and verified according to the selected test procedure
- Compressed Air: Clean, regulated and humidified
- Fog Collection: Checked through collection funnels and cylinders
- Exposure Duration: Defined by the product or customer specification
Always follow the exact edition of the standard specified by the customer, drawing or laboratory quality procedure.
Salt Spray Chamber Operating Procedure
- Clean the chamber and confirm that the drain line is clear.
- Prepare the test solution according to the applicable standard.
- Filter the prepared solution before filling the reservoir.
- Fill the solution reservoir to the required level.
- Fill the air-saturator tank with suitable water.
- Install clean and identified specimens on non-corrosive supports.
- Maintain the specified spacing and specimen orientation.
- Close and seal the chamber lid correctly.
- Set the required chamber temperature and test duration.
- Start the compressor and adjust the atomising-air pressure.
- Start the salt-fog test cycle.
- Check fog collection after the chamber stabilises.
- Record temperature, pressure, collection rate and observations.
- Stop fog generation after completion of the test.
- Allow the fog to settle before opening the chamber.
- Remove and evaluate specimens according to the applicable procedure.
Specimen Preparation Instructions
- Identify and record every specimen before testing.
- Clean the specimen without damaging or modifying the coating.
- Mask cut edges and untested surfaces when required.
- Apply scribe marks only when required by the test specification.
- Avoid touching the test surface with bare hands.
- Maintain adequate spacing between specimens.
- Prevent condensate from one specimen from falling onto another.
- Photograph specimens before and after testing when documentation is required.
Installation Requirements
- Install the chamber on a strong and level floor.
- Provide a clean compressed-air supply of adequate capacity.
- Provide the correct electrical supply and proper earthing.
- Arrange a suitable water supply and corrosion-resistant drainage.
- Install the chamber in a properly ventilated laboratory.
- Protect nearby electrical equipment from salt fog.
- Maintain sufficient service clearance around the chamber.
- Provide a suitable exhaust arrangement where required.
- Keep sensitive instruments away from the fog-discharge area.
- Follow workplace safety and chemical-handling procedures.
Work Instructions and User Precautions
- Wear gloves, eye protection and suitable laboratory PPE.
- Do not open the lid while salt fog is being generated.
- Allow the fog to settle or exhaust before opening the chamber.
- Use only properly prepared and filtered test solution.
- Do not use metallic tools that may contaminate the chamber.
- Check air pressure and saturator-water level before testing.
- Inspect the atomising nozzle and solution line for blockage.
- Clean salt-solution spills immediately.
- Do not allow salt deposits to accumulate on electrical components.
- Maintain calibration, maintenance and test records.
Salt Spray Chamber Maintenance
- Drain and clean the chamber after completing the test programme.
- Flush the solution pipes and atomising nozzle with clean water.
- Clean the collection funnels and measuring cylinders.
- Inspect the chamber lid seal and joints.
- Check the heater and temperature sensor regularly.
- Inspect the regulator, pressure gauge and saturator system.
- Remove salt deposits without damaging the chamber body.
- Verify timer, alarm and controller operation periodically.
- Calibrate measuring instruments at planned intervals.
- Replace damaged tubing, seals and nozzle components when required.
7 Powerful Benefits of Salt Spray Chamber Asansol
- Accelerated comparison of corrosion resistance
- Improved monitoring of plating and coating quality
- Useful for incoming-material and supplier validation
- Supports process improvement and product development
- Suitable for steel, railway, mining and engineering components
- Digital and touch-screen configurations available
- Multiple chamber sizes for different testing requirements
FAQs About Salt Spray Chamber Asansol
What is a Salt Spray Chamber?
A salt spray chamber creates a controlled salt-fog environment for evaluating the comparative corrosion resistance of metals, coatings, plating and finished components.
Do you supply Salt Spray Chamber in Asansol?
Yes, we supply salt spray test chambers to Asansol and nearby steel, coal, railway, engineering, coating and manufacturing areas.
Which Asansol industrial areas do you serve?
We supply to Asansol Industrial Area, Burnpur, Raniganj, Mangalpur, Jamuria, Kulti, Barakar, Salanpur, Chittaranjan and nearby locations.
Which industries use Salt Spray Chambers?
Salt spray chambers are used by steel, railway, automotive, electroplating, paint, powder-coating, fastener, fabrication, electrical and testing industries.
Can the chamber support ASTM B117 testing?
A suitably configured chamber can support operation according to ASTM B117 when the required solution preparation, temperature, fog collection, specimen placement and documentation procedures are followed.
Does ASTM B117 define the test duration?
The exposure duration and acceptance criteria are normally defined by the product specification, customer requirement, drawing or another applicable standard.
What chamber sizes are available?
Small, medium and large chamber capacities are available. Selection depends on specimen dimensions, specimen quantity and testing workload.
Is a touch-screen Salt Spray Chamber available?
Yes, touch-screen models are available with programmable controls, alarms and optional test-data features.
Is an air compressor required?
Yes, a clean and regulated compressed-air supply is required for atomising the salt solution. Required capacity depends on the chamber model.
Can painted and powder-coated components be tested?
Yes, painted, plated, phosphated, powder-coated and otherwise protected metallic components can be tested according to the applicable specification.
How often should the chamber be cleaned?
The chamber, reservoir, pipelines, nozzles and collectors should be cleaned according to the test schedule and whenever deposits or contamination are observed.
Do you provide installation guidance?
Yes, technical guidance can be provided for chamber installation, compressed-air connection, drainage, operation and routine maintenance.
Related Product Categories
- Salt Spray Chamber Products – Corrosion-testing chambers and related equipment.
- Industrial Instruments – pH meters, pH controllers, TDS meters and sensors.
- Water and Chemical Storage Tanks – Water tanks and chemical-storage solutions.
External Technical Reference
Refer to the applicable edition of ASTM B117 and the customer-specific product standard before finalising the test procedure.
Business Partner and Dealer Opportunity
Dealers, distributors, laboratory-equipment suppliers, testing consultants, industrial-product suppliers and system integrators may contact us for business cooperation involving salt spray chambers and corrosion-testing equipment.
Buy Salt Spray Chamber Asansol
Contact UMA Industries for chamber capacity, technical specifications, controller selection, optional accessories, installation requirements and commercial quotation. We supply Salt Spray Chamber Asansol and corrosion-testing equipment throughout West Bengal and India.
Need help choosing? Call/WhatsApp us for industrial pH/ORP solutions.
Reviews
There are no reviews yet.
