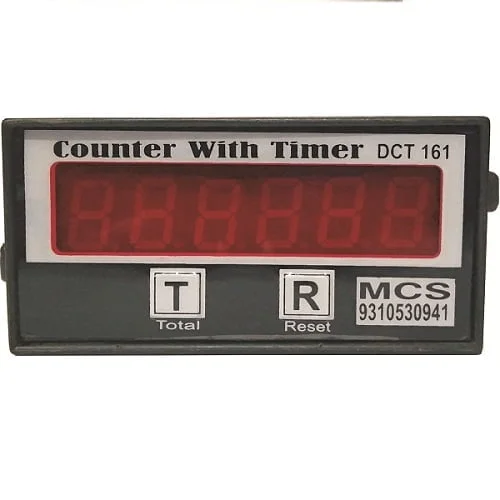

UMA Industries manufactures and supplies Counter with Timer for industrial production counting, machine stroke counting and machine running-time monitoring. This compact instrument combines a 6-digit production counter with run-hour tracking in HH:MM:SS format, making it useful where a factory wants both quantity and utilization data from one panel-mounted device.
The Counter with Timer is suited to press machines, packaging machines, cutting machines, assembly machines, special-purpose machines, conveyors and general industrial automation panels. It can work with pulse-type inputs from a proximity sensor, reed switch, limit switch, photo sensor, microswitch, relay contact or PLC pulse output, depending on the machine design and control philosophy.
Many production teams already track daily output, but they still miss the running time that explains how long the machine was actually active. By combining count and time in one instrument, Counter with Timer helps with production visibility, operator reporting, shift comparison, machine utilization checks and maintenance planning without moving to a larger automation platform.
Counter with Timer for industrial production monitoring
This product is especially practical for small and medium plants that need simple shop-floor data rather than a full SCADA or historian system. It gives a direct local display for count and run time, so supervisors can verify production pieces, machine cycles and active hours at the machine itself. In a busy plant, that simple visibility is often enough to identify under-used assets, slow cycles, frequent stoppages or abnormal running patterns.
Because the Counter with Timer is a panel-mounted industrial instrument, it fits naturally into machine control cabinets, operator panels and retrofits for older equipment. Selection should be based on the machine’s input signal type, supply voltage, reset logic and display requirement. Company prices on the website are confirmed, and the final configuration can still be finalized in quotation according to application needs.
Working principle and selection guidance
The counter increments when it receives a valid pulse, stroke or switching signal. The timer records active running time based on machine activity rather than simple power-on time. This makes the Counter with Timer a practical tool for plants that want production count and run-time record in the same device. If the machine generates contact bounce or multiple signals per stroke, the input arrangement should be checked during installation so that the count reflects the intended machine cycle.
Selection normally depends on the machine’s electrical interface and operating pattern. For example, a press machine may use a stroke signal, while a packaging line may use a photo sensor or PLC output. A cutting or shearing machine may need a clean pulse from a switch or sensor. A system integrator or panel builder can choose the signal source that gives one reliable count per cycle. The Counter with Timer is therefore best selected as part of the overall machine control logic, not as a standalone decorative display.
Published prices on the website are company-confirmed. Product size, capacity, internal and external dimensions, power supply, optional controls/accessories, delivery schedule and mode of transport may be finalized or changed according to customer requirements in the quotation or proforma invoice. That flexibility matters for retrofits, OEM panels and machine-builder projects where the electrical layout may vary from one installation to another.
Applications of Counter with Timer
The this product is used in many practical industrial applications where both count and time matter. Power press machines use it for stroke count and shift run hours. Packaging machines use it for pouch count, carton count, bottle count or batch count. Cutting and shearing machines use it for cycle monitoring. Injection moulding and plastic processing lines can use it for part count and active machine hours where suitable pulses are available.
Assembly machines benefit from clear part-count monitoring, especially when several stations share a single production target. Printing and labeling machines can use the same device for run-hour record and job-wise quantity tracking. Special-purpose machines and automation retrofits often need a compact, reliable tool that can show actual production without requiring software login or network configuration. For such cases, this product is a useful and economical choice.
Conveyor-based systems can also use the product with a suitable photo sensor or proximity sensor to count passing products, packets, bottles or cartons. In maintenance planning, the run-hour function helps teams review actual machine use instead of estimating service intervals only from calendar dates.
Delhi NCR use cases and buyer relevance
For buyers in and around Delhi NCR, the product is relevant for machine shops, packaging units, panel builders, OEMs and production floors that prefer locally supported industrial instruments. The counter is particularly useful for plants that operate mixed machine types and want one standard counting and timing concept across multiple lines. this product is also suited to retrofit work where older machines need better visibility without major panel redesign.
The wider industrial ecosystem around Faridabad, Ballabgarh, Delhi, Noida, Ghaziabad, Gurugram, Manesar, Bahadurgarh and nearby manufacturing belts often includes diverse automation needs: presses, conveyor systems, cutters, small assembly machines and packaging lines. For such buyers, a compact counter-timer is easier to adopt than a larger PLC-based system when the requirement is simply production count plus active run time.
Installation and operating procedure

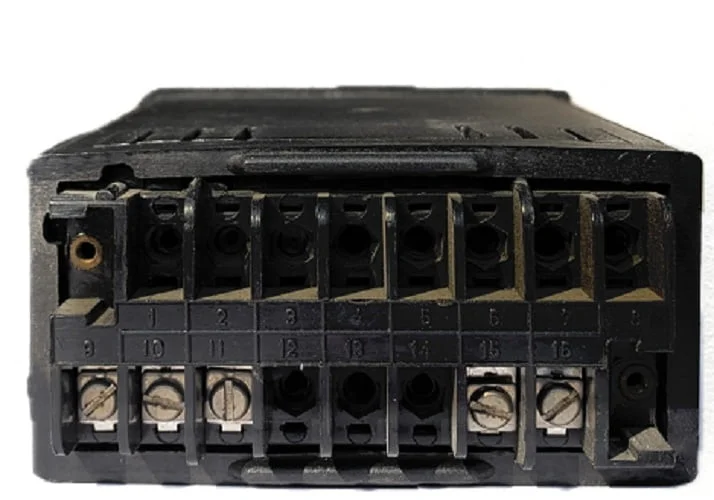

Install the unit in the specified panel cut-out and follow the supply marking on the product label. Connect the sensor input according to the machine’s output type and keep signal wiring separate from heavy motor cables and VFD lines. If the cable run is long or the environment is electrically noisy, shielded cable and correct earthing help improve signal integrity. The sensor should be mounted so that each stroke or product event creates one clean pulse.
For operation, the user normally resets the count or timer as required by the shift procedure, starts the machine, and then watches the live display during production. The this product should be checked on a few sample cycles after installation to confirm that the machine signal produces the intended count and that the time-recording behavior matches the process. If the machine uses different logic for counter reset and timer reset, that arrangement should be planned at the panel stage.
Routine verification for Counter with Timer
Routine verification is simple and should be part of commissioning and maintenance. First, confirm that the displayed count increases by one for one intended machine cycle or one intended pulse. Then compare the run-time display against a reference time period under actual operating conditions. If the machine is intentionally slowed for setup or testing, the verification should be repeated at normal production speed so the input signal is representative. This is a practical verification step, not a laboratory calibration program.
If double counting appears, the sensor position, contact bounce behavior or input filtering should be reviewed. If the timer stops too early or too late, the machine activity signal and delay logic should be checked in the panel wiring or control sequence. In most cases, reliable verification comes from clean signal wiring, proper sensor mounting and consistent machine settings.
Maintenance, safety and good panel practice
Like other industrial instruments, the this product performs best when the panel is kept clean, dry and properly grounded. Periodic terminal checks are useful in vibrating machines or in plants where cable disturbance can happen during tool change or maintenance. The display window should be kept free from oil spray, coolant ingress and dust accumulation. If the machine environment is harsh, panel protection and cable routing become even more important than the instrument itself.
Safety precautions are straightforward. Do not connect the wrong supply voltage. Do not mix input types without checking compatibility. Do not route sensor wiring with heavy current cables. Do not leave a sensor loose on a vibration-prone machine. Do not reset the counter during production unless the process requires it. These practices help maintain accurate signals and reduce false counts.
Faridabad manufacturing origin, supply and dispatch
This product is Manufactured at UMA Industries’ unit in Village Sunped, Ballabgarh, Faridabad, Haryana, India. UMA Industries supplies and provides technical support to customers across India. Ready-stock compact products, controllers, spares and accessories may be dispatched by air courier within 3 working days, subject to availability, payment confirmation, destination serviceability and carrier schedules. Delivery timelines for complete machines or larger equipment are confirmed separately according to model, packing and freight mode. For this product, dispatch is therefore a conditional logistics step, not a blanket promise of delivery time.
For customers needing related industrial timing or counting devices, helpful internal references include Digital Counter, Dosing Pump Timer, Human Sensing Timer and Reject and Good Pcs detector. These pages can support machine builders and panel integrators who want nearby functional options for automation and monitoring.
Technical overview and practical buyer checklist
When evaluating a this product, the buyer should confirm the pulse source, the required display format, the reset requirement, the panel space available and the machine’s electrical noise environment. For retrofit work, it is also useful to confirm whether the existing machine already provides a clean contact or whether a separate sensor must be added. For OEM work, the panel designer should decide where the device will sit in the operator sequence so that the display is easy to read during production.
A practical checklist includes: signal type, supply voltage, mounting space, count reset logic, run-time display requirement, sensor compatibility and panel environment. This keeps the quotation stage clear and reduces rework later. If the machine builder wants more than one display or separate timing logic, that can be discussed during quotation because product configuration may vary by application.
For industrial buyers who want a simple, dependable instrument, this product offers a straightforward way to connect production quantity and machine activity. It is a useful choice for shops that value visible, local counting without over-complicating the control panel.
Frequently Asked Questions
What is a Counter with Timer used for?
this product is used to count machine pulses, strokes or pieces and to record active running time in the same instrument. It helps with production monitoring and maintenance planning.
Which machines can use this product?
It can be used on presses, packaging machines, cutting machines, assembly machines, conveyors, printing machines, special-purpose machines and similar industrial equipment with a suitable pulse source.
Can it work with sensors and switches?
Yes. The product can work with suitable proximity sensors, reed switches, limit switches, photo sensors, microswitches, relay contacts or PLC pulse outputs, subject to the machine design.
Does the timer measure machine active time?
Yes, the run-time function is intended to record active machine running time based on detected machine activity, not just total power-on duration.
Is this a panel-mounted instrument?
Yes, it is intended for installation in industrial control panels and operator stations where count and run time need to be seen locally.
Can the count and timer be reset separately?
Depending on the supplied model and the required machine logic, separate reset handling for count and timer can be arranged during selection and wiring.
Do you supply this product across India?
Yes. UMA Industries supplies and provides technical support to customers across India, including OEMs, panel builders and production units.
How should I request the right model?
Share the machine type, input signal, supply voltage, reset requirement, installation location and whether you need any special timing logic. UMA Industries can then help finalize the quotation-stage configuration.
For a practical, shop-floor friendly this product, contact UMA Industries with your machine details, signal type and panel requirement. We will help you select the right configuration for reliable production counting and run-time monitoring.
Call 9310530941 or 8178668698 for quotation support and application guidance. Counter with Timer is a simple industrial solution, but the right selection depends on the machine signal and panel logic, so please share those details before ordering.
Counter with Timer is supplied with the final configuration recorded in the customer quotation or proforma invoice.
