Safety Light Curtain SLC-1030 – Best Machine Safety Light Curtain Sensor | Industrial Machine Safety Sensor | Best Price India
Safety Light Curtain SLC-1030 from UMA Industries & Machine Control Systems Faridabad. is a compact and reliable safety light curtain sensor for presses, automated machines and material handling systems. The Safety Light Curtain SLC-1030 creates a protective infrared light curtain that stops the machine whenever an operator enters the danger zone.
✅ Product Introduction
The Safety Light Curtain SLC-1030 is an advanced machine safety protection sensor designed to prevent accidents by instantly stopping machine operation when a person or object enters the protected area. It is widely used in industrial automation, press machines, robotic cells, conveyors, packaging units, and assembly lines where operator safety is critical.
With fast response time, stable detection, and reliable performance, the SLC-1030 safety light curtain improves workplace safety while maintaining smooth production flow.
Key Technical Specifications – Safety Light Curtain SLC-1030
- Model: SLC-1030 Safety Light Curtain Sensor
- Overall height: 365 mm
- Protected height: 300 mm
- Number of beams: 10 beams
- Beam pitch: 30 mm
- Output type: PNP or NPN, normally closed (NC)
- Output indication: Corresponding status LEDs on sensor
- Sensor power supply: 12–24 V DC
- Response time (ON → OFF): 10–15 ms
- Operating temperature: up to 55 °C
- Short-circuit protection: output short-circuit protected
- Cross-section: 30 × 30 mm profile
Controller for Safety Light Curtain SLC-1030
The SLC-1030 works with a dedicated safety controller designed by
MCS – Machine Control Systems:
- Controller power supply: 220 VAC
- Relay outputs: 1 or 2 safety relays (for emergency stop circuit)
- Beam bypass function provided on controller
- Suitable for machines with quick emergency stop requirement

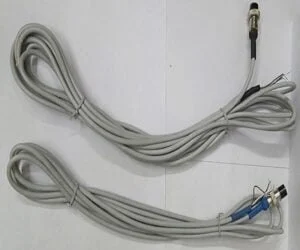

Cable Set for Safety Light Curtain SLC-1030
Two cables are required for installation of the safety light curtain pair:
- Emitter cable: 5 m length
- Receiver cable: 3 m length
- Connectors: suitable industrial connectors at one end, free end for panel wiring
Other Models in Safety Light Curtain Series
UMA Industries & Machine Control Systems offer a complete range of
safety light curtains:
- Safety Light Curtain SLC-0630
- Safety Light Curtain SLC-1030 (this model)
- Safety Light Curtain SLC-1230
- Safety Light Curtain SLC-1630
- Safety Light Curtain SLC-1830
- Safety Light Curtain SLC-2430
- Safety Light Curtain SLC-3030
- Special sizes and custom beam configurations available on demand
Standard Features – Safety Light Curtain SLC-1030
- Sensor power supply: 12–24 V DC
- Output type: PNP or NPN / NC selectable (depending on model)
- Output status indication: LEDs built into sensor body
- Response time: typically 10–15 ms for fast machine stop
- Number of beams: 8, 10, 12, 16, 18, 24, 30 or as required
- Beam bypass: provided in controller (for muting / maintenance)
- Standard operating range: up to 3 m
- Higher sensing ranges: 5 m, 10 m, 15 m available on request
- Standard cable lengths: 5 m emitter, 3 m receiver (custom lengths optional)
- Operating temperature: up to 55 °C
- Protection: short-circuit protected outputs
- Application: suitable for machines requiring quick emergency stop and operator safety
Safety Standards – IEC 61496 & ANSI / UL 61496
Safety light curtains should be selected and installed according to
IEC 61496-1 & 61496-2 and ANSI / UL 61496-1 & 61496-2.
The safety “TYPE” and performance level of the light curtain must match the risk category of the machine.
Optional safety functions listed in Annex A of IEC 61496-1 must comply with the Annex A requirements.
Working Principle of Safety Light Curtain | Safety Light Curtain SLC-1030

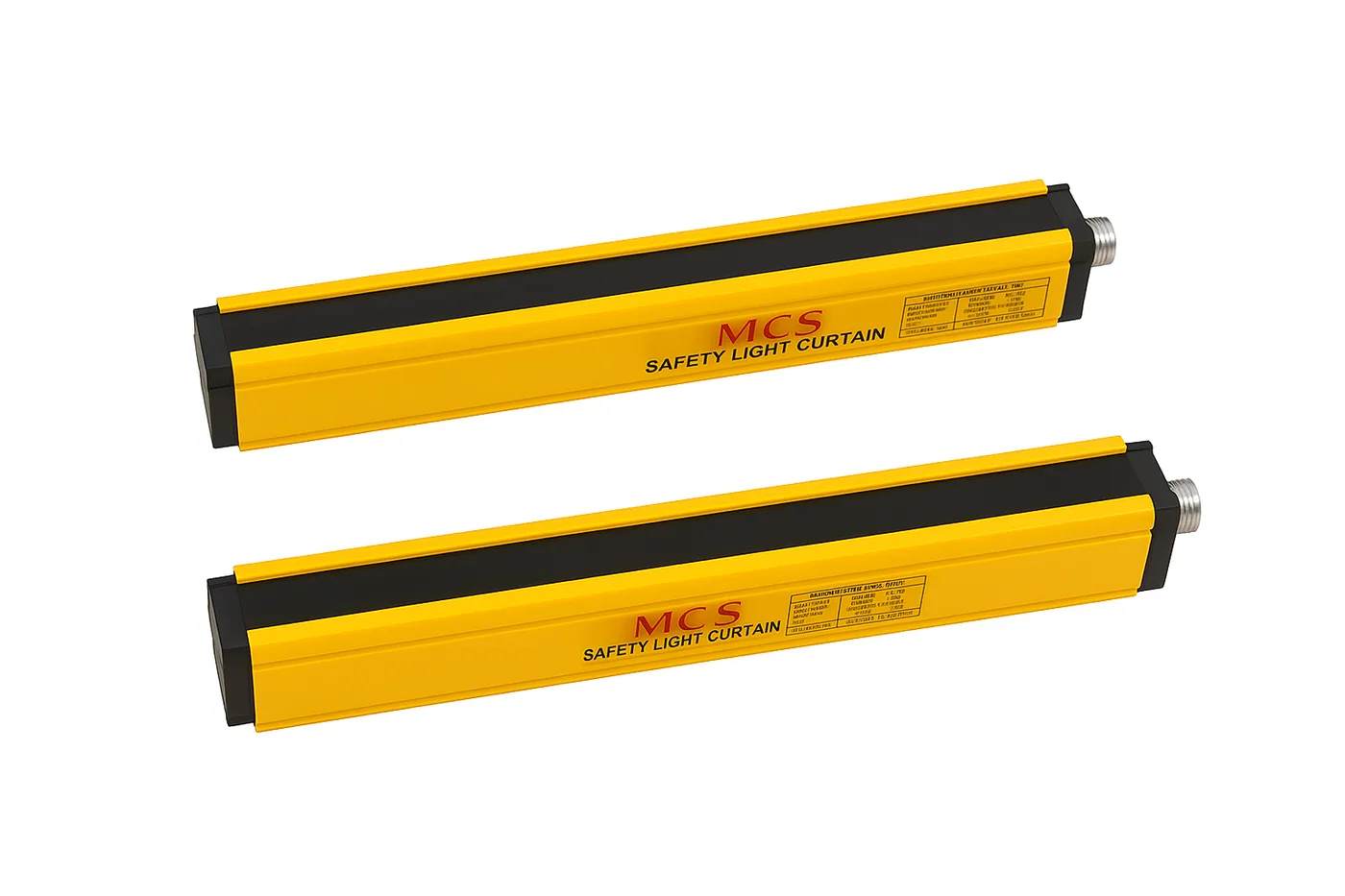

A safety light curtain or Safety Light Curtain SLC-1030 consists of two parts: a transmitter and a receiver.
- The transmitter houses multiple infrared LEDs that create parallel beams of IR light.
- The receiver contains matching photodetectors that continuously monitor each beam.
- As long as all beams are received, the controller keeps the machine in the “safe to run” state.
- When any object (hand, finger, body or workpiece) interrupts one or more beams,
the light curtain output changes state and the controller immediately sends a
stop signal to the machine safety circuit or raises an alarm.
✅ Key Features
Key Features of Safety Light Curtain SLC-1030
Reliable machine guarding for operator safety
Quick response time for immediate machine stop
Strong and stable detection even in industrial environments
Supports smooth automation with minimal downtime
Easy installation and alignment for faster setup
Durable body for long-term industrial usage
Reduces accidents and improves compliance with safety standards
✅ Applications
Applications of SLC-1030 Safety Light Curtain
Safety Light Curtain SLC-1030 is ideal for:
Power press machines & hydraulic presses
Injection molding machines
CNC and cutting machines
Conveyor systems and material handling
Packaging and labeling machines
Robotic safety zones
Assembly and production lines
Industrial safety automation projects
✅ How It Works
How Safety Light Curtain Works
A safety light curtain has a transmitter and receiver that create an invisible infrared beam field. When any beam is interrupted (hand, finger, body entry), the system sends a signal to stop or block the machine instantly.
This ensures hands-free safety protection without physical barriers, improving both operator safety and productivity.
✅ Benefits for Industry
Benefits of Using SLC-1030
Prevents workplace injury and machine accidents
Increases production efficiency with non-contact safety
Reduces maintenance compared to mechanical guarding
Enhances operator confidence and safe working environment
Suitable for automation lines and fast-moving machines
✅ Technical Specifications
Technical Specifications – SLC-1030
(You can adjust values as per your model datasheet)
Model: SLC-1030
Type: Safety Light Curtain Sensor
Protection: Machine Guarding / Operator Safety
Beam Type: Infrared
Response Time: Fast Response
Output: Industrial Safety Output
Application Use: Automation & Industrial Machines
Mounting: Easy Alignment Brackets
📌 If you share the exact specs (range, resolution, number of beams, IP rating, voltage, output type), I will convert this into a perfect professional spec table.
✅ What’s Included
Package Includes
Safety Light Curtain Transmitter Unit
Safety Light Curtain Receiver Unit
Mounting accessories (standard)
User manual / wiring guide
✅ Why Buy From Machine Control Systems (MCS)
Why Choose Our Safety Light Curtain SLC-1030?
Reliable quality for industrial usage
Best pricing for automation & OEM customers
Quick dispatch across India
Technical support for selection and installation
Suitable for factories, manufacturers, and machine builders
✅ FAQ Section
Frequently Asked Questions (FAQ)
Q1. What is Safety Light Curtain used for?
It is used for machine guarding to protect operators by stopping the machine when the safety zone is interrupted.
Q2. Where can SLC-1030 be installed?
It is commonly installed in press machines, CNC machines, conveyors, packaging machines, and robotic safety areas.
Q3. Does it increase machine safety?
Yes, it provides non-contact protection, reducing accidents and improving safety compliance.
Q4. Is Safety Light Curtain better than physical guards?
Yes, it offers faster operation, better accessibility, and higher productivity compared to mechanical guards in many applications.
