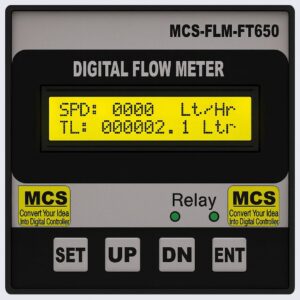

Liquid Flow Meters is a microcontroller-based digital flow meter designed for accurate measurement of water and other clean liquids. It accepts pulse input from turbine / multi-jet flow sensors and displays both instant flow rate in Lt/Hr (or LPM) and totalized volume in litres (Ltr) on a bright 16×2 LCD.
The unit comes in a standard 96×96 mm panel-mount enclosure, runs on 220 VAC supply, and includes two relay outputs for pump/valve control or high/low flow alarms. Simple front keys (SET, UP, DN, ENT) make field configuration and calibration fast and secure.
Key Features : Liquid Flow Meters | Best Water Flow Meter
Digital LCD display
Clear 16×2 backlit display
Top line: SPD: xxxx Lt/Hr (instant flow rate)
Bottom line: TL: xxxxxxx.x Ltr (total volume)
Totalizer in litres
Accumulates total discharge in litres
Value stored in internal memory (EEPROM) to retain data during power failure
Pulse input flow measurement
Works with pulse output water meters / turbine flow sensors
Programmable pulses per litre (K-factor) – supports DN50, DN40, DN32, DN25, G3/4″, 1/2″, G1/4″ and similar sensors
Dual relay outputs
Two independent relay contacts on front panel (indicated by LEDs)
Use for batch control, tank filling, pump on/off, high/low flow alarms
User-friendly keypad
4 keys: SET, UP, DN, ENT
Easy parameter setting from front panel
Password-protected calibration to prevent accidental changes
Industrial design
Rugged microcontroller hardware and proven firmware
Designed for continuous operation in industrial environments
Made in India by MCS / UMA Industries
Typical Applications : Liquid Flow Meters
RO / DM / softener plant water flow monitoring, Liquid Flow Meters
Process water lines and utility flow measurement in industries
Boiler and cooling water circulation monitoring
Chemical dosing and batching systems
Washing, filling and packaging machines (OEM integration)
General water flow meter and liquid flow meter applications
Technical Specifications : Liquid Flow Meters
Input
Sensor type: Pulse output (reed / Hall / NPN open-collector)
Programmable pulses per litre (K-factor) for various pipe sizes, Liquid Flow Meters
Display
16×2 character LCD, yellow backlight
Parameters shown:
Instant flow: SPD: xxxx Lt/Hr
Total volume: TL: xxxxxxx.x Ltr
Outputs
2 × relay outputs (potential-free contacts)
Configurable as batch total cutoff, pump/valve control or alarm contacts
Electrical
Supply voltage: 220 VAC, 50 Hz
Power consumption: low (electronics only – suitable for panel mounting)
Mechanical
Front size: 96 × 96 mm
Panel cutout: suitable for standard 92 × 92 mm (approx.; adjust to your actual size)
Mounting: panel-mount, bezel with front-label “DIGITAL FLOW METER”
Front keys: SET, UP, DN, ENT
Environmental
Operating temperature: 0 to 55 °C (typical)
Relative humidity: up to 95% non-condensing
Ordering Information | Liquid Flow Meters
Model: MCS-FLM-FT650
Description: 96×96 digital LCD water / liquid flow meter, 220 VAC supply, dual relay output, totalizer + flow rate indicator
*Technical Specification* : Water Flow Meter
- Range: 000000 t0 999999.9 Liters
- Display: LCD Display 2 Lines
- Memory: Power Fail Memory Guaranteed for years
- Output: Relay Output
- Supply: 220 Vac
- Dimension: 96x96x85 mm
- Body: Plastic ABS
Liquid Flow Meters, Flow Controller, Flow Control Meter, Water Flow Meter
Hence working Principle of flow meter is to measure the amount of gas and liquid. Otherwise streams around the device. This meter calculates either mass or volume. The liquid flow via the pipe/sensor can be equal to the cross-sectional area within a meter & the velocity of the liquid flow (Q = A * v).
Other Related Products : Water Flow Meter
Hence a flow sensor required to connect with this meter; we given few links here to see specifications and purchase.
Water flow sensor Electromagnetic type 1/8 inch ; While another size in small is Water flow sensor Electromagnetic type 1/4 inch; and Water flow sensor Electromagnetic type 1/2 inch; Hence Water flow sensor Electromagnetic type 1 inch; is most common used while Water flow sensor Electromagnetic type 1-1/2 inch; and Water flow sensor Electromagnetic type 2 inch also available.
Water Flow Meter | Liquid Flow Meters– Frequently Asked Questions (FAQ)
1. What is the MCS-FLM-FT650 Digital Flow Meter used for?
The MCS-FLM-FT650 is used to measure and display water or liquid flow rate and total volume. It accepts pulse signals from a compatible flow sensor and shows instant flow in Lt/Hr and total volume in litres (Ltr) on the LCD. It also provides relay outputs for pump/valve control and alarms.
2. Which type of sensors can be connected to this flow meter?
The instrument works with pulse-output sensors such as turbine flow sensors, multi-jet water meters, reed-switch meters, or Hall-effect sensors that give pulses proportional to flow. You only need to program the correct pulses per litre (K-factor) in the meter.
3. Can it be used as both a water flow meter and a liquid flow meter?
Yes. It is commonly used as a water flow meter, but it can measure many other clean, low-viscosity liquids as long as a suitable pulse sensor is installed and calibrated.
4. What information is shown on the LCD display?
The backlit LCD shows two main parameters:
SPD: Instant flow rate in Lt/Hr (or LPM version if ordered)
TL: Totalized volume in Ltr, with decimal resolution
This makes it easy to monitor real-time flow and cumulative quantity at a glance.
5. What is the supply voltage?
The standard model operates on 220 VAC, 50 Hz and is suitable for direct panel mounting in control panels. (Other supply options can be provided on request.)
6. Does the flow meter store the total reading during power failure?
Yes. The total volume (TL) is stored in non-volatile memory (EEPROM). When power returns, the meter recovers the last saved total, so you do not lose your cumulative litres.
7. How do I set pulses per litre (K-factor)?
Using the front keys (SET, UP, DN, ENT) you can enter the K-factor digits from the calibration menu. This value is proportional to pulses per litre of your flow sensor. After setting, the meter automatically converts pulses into accurate litres and Lt/Hr.
8. Can one meter work with different pipe sizes?
Yes. The electronics are the same; you only change the K-factor according to the water meter or sensor used (DN50, DN40, DN32, DN25, G3/4″, 1/2″, G1/4″, etc.). This makes the same instrument flexible for many pipe sizes and applications.
9. What are the relay outputs used for?
The MCS-FLM-FT650 has two relay outputs. They can be configured for:
Batch control / automatic tank filling (cut off at a set total volume)
High or low flow alarm
Pump or valve interlocking
Relay status is visible on the front panel through indicator LEDs.
10. Is there password protection for settings?
Yes. Important parameters such as K-factor, relay setpoints and reset functions are password protected. This prevents unauthorized or accidental changes by operators.
11. How do I reset the total litres to zero?
After entering the password and going to the reset menu, press ENT on the “Reset Zero” option. The totalizer TL will clear to zero and start counting from the next pulses. (Batch total reset is also possible depending on configuration.)
12. Where can this flow meter be installed?
The unit is designed for panel mounting in a 96×96 mm front cutout, typically in:
RO / DM / softener plants
Boiler and cooling water panels
Chemical dosing skids
General industrial control panels
13. What maintenance does the meter require?
The electronic unit itself is almost maintenance-free. Make sure:
The flow sensor is clean and not blocked
Wiring terminals are tight
Supply voltage and grounding are correct
Periodic verification of the total vs. a measured volume is recommended for critical applications.
14. Can it be customized for OEM applications?
Yes. Branding, parameter ranges, or pre-configured K-factors can be customized for OEM machine builders and system integrators, depending on quantity and requirement.
